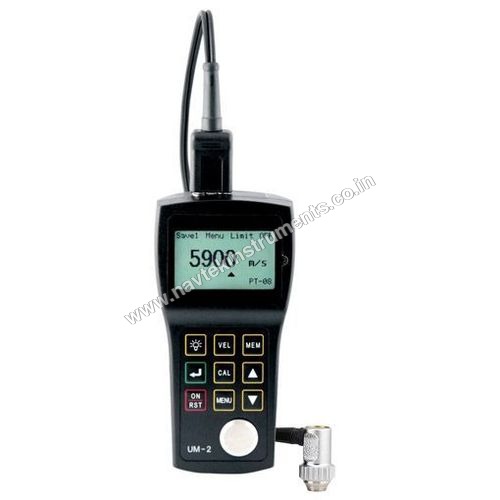

Thickness Tester

Thickness Tester
Thickness Tester
Product Code : UM 2
Product Description

Backed by a team of experienced professionals, our firm has been able to offer Thickness Tester. Superior-grade components are used for designing the offered tester incorporating latest technology. It is provided to the clients in different sizes and configurations to meet our clients requirements. Owing to its excellent performance and high operational accuracy, offered tester is widely used testing the thickness of different surfaces. Moreover, we timely deliver this Thickness Tester at the destinations of our clients within given time-frame to assure their convenience.

Thickness Tester

 Gauge series Use in latest high performance and  low power consumption micro processing technology,applicable to measure the thickness of metal and  other materials base on the ultrasonic operating principle.

 Product Description: Using the latest high performance and low power consumption microprocessor technology, based on the ultrasonic measurement principle, can measure metal and other various material thickness, and the velocity of the material can be measured. Can production equipment of pipeline and pressure vessel thickness measurement, monitoring them in use process corrode after the reduction degree of thin, also can to all sorts of plank and all kinds of machining parts for accurate measurement. Can test any hard materials, aluminum, copper, brass, zinc, polyethylene, PVC, grey cast iron, and other any good conductors of ultrasonic thickness.

Specifications and Accessories of UM-2 ultrasonic thickness gauge

Operating principle:

Ultrasonic pulse/echo method with dual-crystal probes

Probe zero adjustment:

Selectable: 1-point calibration: normal measurement

                    2-point calibration: curve surface measurement or other special application with a high precision

V-path correction:

Automatic

Measuring range:

0.8mm to 300mm; (Depending on probe, material and surface condition)

Display Resolution:

Hï¼Å“100mm : Selectable 0.01mm/0.1mm

H≥100mm : 0.1mm

Units:

inch or mm

Display:

128×64 dot-matrix LCD screen with EL backlight (42mm×57mm)

Measurement update rate:

4 Hz in standard measurement mode

Material velocity range:

1000 to 9999 m/s

Power:

Two 1.5V AA alkaline batteries (Warning with low battery voltage)

Operating time:

Up to 200 hours (without backlight) with alkaline batteries, depending on operating mode

Auto shut-off:

After 5 minutes of non-use

Operating temperature:

-10℃ to +50℃ ï¼Ë†Specification to -20℃ on requestï¼â€°

Size:

149mm×73mm×32mm (H×W×D)

Weight:

200g; 7oz (including batteries)

Data logger capacity:

Up to 500 readings can be divided into a maximum of 5 files (user-selectable)

Operating language:

English and Chinese

Measuring error:

Up to 10mm:±0.05mm

Above 10mm: ±(0.5%H+0.01)mm

H is the height of the testing object

Repeatability:

±0.05mm

Application software:

UMVIEW

Interfaces:

SerialC port in combination with a communicative cable;
