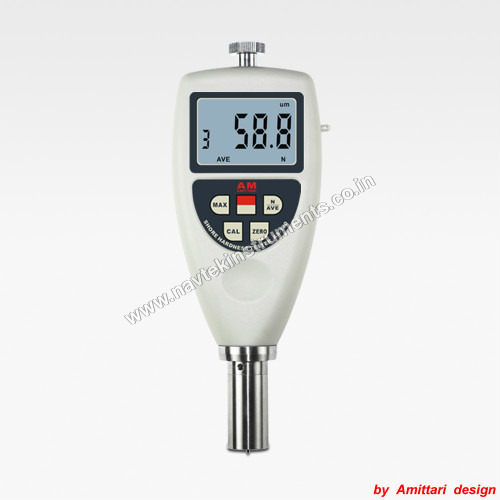

Shore Hardness Testing

Shore Hardness Testing
Shore Hardness Testing
Product Code : AM
Product Description
Shore Hardness Testing

Shore Hardness Tester Series including (A, B, C, D, E, O, DO, OO )Type, model complete, with different probe size, use for different measured objects and Hardness value, to meet different request for kinds of material hardness measure.

Product Description

Shore Hardness Tester are widely used in rubber, plastic hardness measurement. Has the features of simple structure, easy to use, type of light weight, small reading intuitive etc., can carry hand-held measurement, also can device in supporting the production of the constant load shelf fixed load measurement.

Model Information

Type

Indenter

Typical Examples Of Materials Tested

Hardness Values




AS-120A




0.79Truncated

(frustum) cone


Soft vulcanized rubber, natural rubber,nitriles,thermoplastic elastomers, flexible polyacrylics and thermosets, wax, felt, and leathers.




20~90A


AS-120B


R0.1Cone

Moderately hard rubber, thermoplastic elastomers, paper products, and fibrous materials.


Above 90 A

Below 20 D


AS-120C


0.79Truncated

(frustum) cone

Medium-hard rubber, thermoplastic elastomers, medium-hard plastics and thermoplastics.


Above 90 B

Below 20 D


AS-120D

R0.1Cone

Hard Rubber,thermoplastic elastomers, harder plastics, and rigid thermoplastics .


Above 90 A


AS-120DO


R1.2 Spherical

radius

Moderately hard rubber, thermoplastic elastomers, and very dense textile

windings.


Above 90 C

Below 20 D




AS-120O



R1.2 Spherical radius

Soft rubber, thermoplastic elastomers, very soft plastics and thermoplastics, medium-density textile windings.



Below 20 DO

AS-120E


R2.5 Spherical

radius

Hard sponge,EVA

Above 90 DO

Below 20 A




AS-120OO




R1.2 Spherical

radius

Extremely soft rubber, thermoplastic elastomers, sponge, extremely soft

plastics and thermoplastics, foams, low-density textile windings.




Below 20 O

Durometer Selection

Soft

Middle

Hard

Type A (20-90A)

Type B (Above 90A Below 20D)

Type C (Above 90B Below 20D)

Type D (Above 90A)

Type DO (Above 90C Below 20D)

Type O (Below 20DO)

Type E (Above 90DO Below 20A)

Type OO (Below 20O)

Product Feature

* Public and imperial units converted, with the average computing power.Integrated design, small volume, light weight, simple structure, easy to use, Intuitive readings and automatic shutdown function.

* Use "USB data output " and "RS-232 data output " with connection PC

* Brovide "Bluetooth data output" choice.

Product Parameter

Display LCD Display

Case: High impact ABS

Resolution: 1 µm (0.1 mils)

Range: 0~100H

Accuracy: ±1% or ±5 µm

Measurement speed: >30 (readings per minute)

Operating temperature: 0°C to 50°C (32°F to 120°F)

Batteries: 2x1.5v AAA(UM-4) battery

Size:176x63x25mm

Weight: 310 g

Product Accessories

Standard Accessories

* Main unit

* Test block

* Carrying case

* Operation manual
