Cable Tension Meter
The Dillon Quick-Check Tension Meter quickly measures tension in cable guardrails, guy lines and overhead wires. It installs, measures and removes in seconds. The digital loadcell is highly accurate and requires no lookup or correction tables.
Cable Tension Meter. It is widely used in electrical and allied industries for measuring the tension of cables or wires. We design the offered meter using premier-grade components incorporating advanced technology. To ensure its flawlessness, offered meter is thoroughly checked by our diligent quality controllers. Our esteemed patrons appreciate the offered Portable Cable Tension Meter for its highly efficient functioning, low maintenance, easy installation and prolonged functional life.
Cable Tension Meter

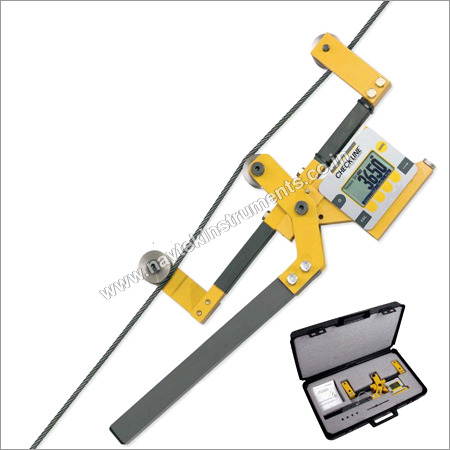

The Check-Line Digital Cable Tension Meter quickly measures tension in cable guardrails, guy wires and overhead lines. It installs, measures and removes in seconds. The digital load cell is highly accurate and requires no look up or correction tables.
The Fastest Cable Tension Meter
The CTM can be placed on a cable, measure its tension, and removed in under five seconds! There are no complex lookup tables, no conversion charts. The operator can quickly select from 15 different cable sizes and types stored in the Quick-Check's memory. The Check-Tensioning mode graphically displays the current and target tensions for extremely quick setting of line tension. Even the infrequent battery changes are quick.
The CTM can be employed in many industries to ensure proper tensioning. Typical applications include tower and stack guy wires, pretensioned cable barriers, bridges, elevators, winch rope, prestressed concrete, fall arrest systems, aircraft cables and utilities.
- Measures Cables: 3/16"- 1" OD (5mm-25mm)
- CTM-2000-2000 lb/10 kN/1000 kg
- CTM-10000-10000 lb/45 kN/4500 kg
- NIST Calibration certificate included
- 1 year warranty
- Check-tensioning modes saves time
- Portable and rugged- Designed for outdoor use
- Built-in averaging saves time and eliminates errors
- Stores calibrations for 15 unique wire sizes and types
