Cable Height Meter
- Minimum Order Quantity

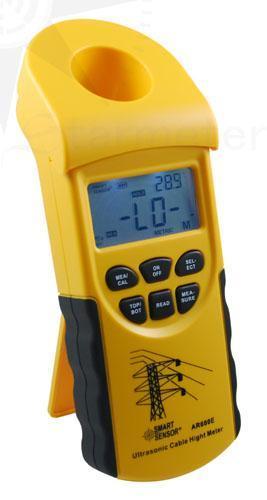

Digital Ultrasonic Cable Height Meter
The AR600E with the Horizontal Adapter can be used for depth measurement, (examples: An elevator shaft or well) provided there is sufficient width to permit a proper ultrasonic reflection. (1.4m either side of the centre of ultrasonic beam at 23 metres distance)
Typical Measurement Applications: Electrical, Forestry, Industrial, Mining, Overhead cables, Tree branches, Elevator shafts, Depth of Wells.
Cable Diameter: 25mm; 12mm; 5.5mm; 2.5mm
Distance (Height): 10-75 ft/3-23m; 10-50 ft/3-15m; 10-39 ft/3-12m; 10-32ft. /3-10m
Accuracy: 0.5% ± 2 digits
Maximum Number of Cables: P to six cables
Horizontal Distance Measurement: 3-18m With Horizontal Adapter provided
Individual Cable Height Measurement: Yes -Bottom to Top, or Top to Bottom
Minimum Gap between Cables: 15cm
Includes: Carry case, Vinyl Pouch, Battery 9V, Horizontal Adapter.
