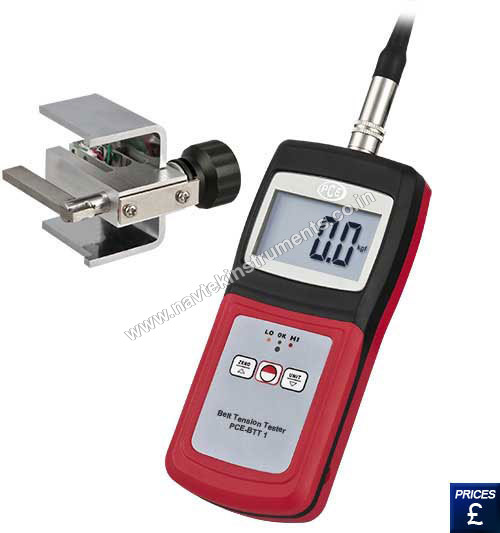

Belt Tension Meter
We have attained a reputed position in the market as an eminent manufacturer, supplier and exporter of Belt Tension Gauge. It is widely used for measuring the tension of rubber and other belts in different industries. Our diligent professionals use premier-grade components for designing the offered gauge to ensure its high efficiency. Owing to its easy installation, low maintenance, prolonged functional life and lightweight, offered Belt Tension Gauge is highly appreciated by our most valued patrons.
Belt Tension Gauge Drive belts achieve maximum lifetime and efficiency when tensioned to the manufacturers recommended tension.
The newRTM-400PLUS Belt Tension Gage provides an easy, reliable method for accurately measuring static tension in flat, V-, cog or toothed belts of rubber, leather, fabric, plastic and composite materials. The RTM-400PLUSs Belt tension gage hand-held, LED-optical sensor is cable-connected to the gauge body, which contains a microprocessor that converts the sensor signal to a pre-selected reading of either Belt Vibration Frequency (Hertz) or Belt Tension (Newtons [N] or pounds / force [lbf]). Results are displayed on a bright, easy-to-read LCD display. An acoustic signal indicates a successful measurement.
The RTM-400PLUSs Belt Tension Gauge LED-optical sensor is unaffected by ambient noise, offering improved performance versus competitive, acoustic sensor-based designs.
Measuring range 10 - 400 Hz, standard 3 - 800 Hz, optional (inquire)
Free span length, max. 30 ft. (10 m)
Belt density, max. 10 kg/m
Digital sampling error < 1%
Indication error ± 1 Hz
Total error < 5%
Operating temp. 50 to 122 °F (10 to 50 °C)
Max. storage temp. 23 to 158 °F (5 to 70°C)
Gauge body material Plastic (ABS)
Dimensions, body 3.15 in. x 4.96 in. x 1.47 in (80 x 126 x 37mm)
Dimensions, case 8.9 in x 7.0 in x 2.0 in.(226 x 178 x 50mm)
Display 2-line LCD, 16 char./line
Languages English, German, French, Italian
Power supply 9-volt alkaline battery
